E5 SERIES
JACK E5 Overlock

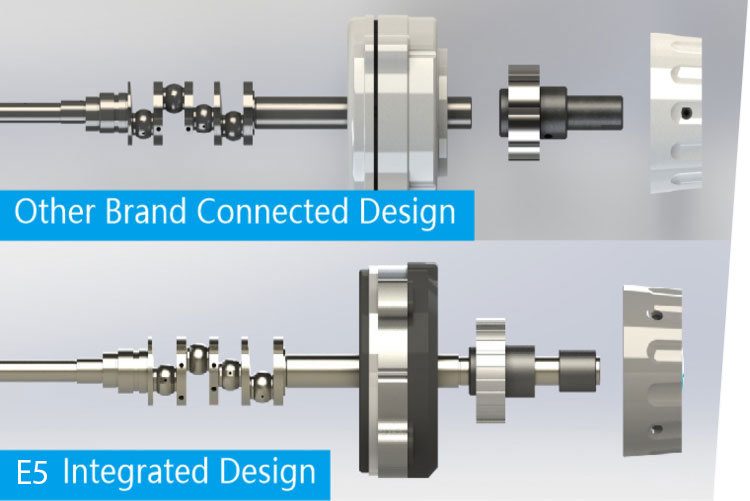

A series of modern 3, 4, and 5-thread overlock machines, featuring an integrated, energy-efficient motor mounted directly onto the machine’s main shaft (Direct Drive system). This design ensures quiet, reliable operation and reduced electricity consumption. The machine’s advanced construction provides improved motor ventilation, allowing for faster, more efficient performance and a longer service life. The JACK E5 overlock is equipped with a simple control panel for adjusting sewing speed and needle positioning, as well as a function to quickly restore factory settings. It also includes integrated LED lighting for the workspace.
The new ‘S’ model features an easily accessible adjustment for the height of the feed dogs, making it possible to achieve excellent stitch quality on materials of varying thicknesses. The adjustment lever can be set to three positions:
A – for light materials
M – for medium-weight materials
H – for heavy materials
Technical specifications:
- sewing speed: up to 5,500 stitches/min
- presser foot lift height: up to 6 mm
- bottom differential feed
- centralized lubrication system
| Model | Needles | Number of needles | Number of threads | Needle gauge (mm) | Stitch width (mm) | Stitch length (mm) | Differential transport | Presser foot lift (mm) |
|---|---|---|---|---|---|---|---|---|
| E5-3-02/233 | #11 | 1 | 3 | - | 4 | 3,8 | 0,7 - 2 | 5 |
| E5-3-32R2/223 | #9 | 1 | 3 | - | 1,5 | 3,8 | 0,7 - 2 | 5 |
| E5-4-M03/333 | #11 | 2 | 4 | 2 | 4 | 4,6 | 0,7 - 2 | 6 |
| E5-5-03/333 (3+4) | #14 | 2 | 5 | 3 | 4 | 3,8 | 0,7 - 2 | 5 |
| E5-5-03/233 (5+5) | #14 | 2 | 5 | 5 | 5 | 3,8 | 0,7 - 2 | 5 |
Stable and Durable Construction
Reduced machine torque, resulting in more stable operation.
Increased Ground Clearance
The height of the presser foot arm has been increased to 27 mm, providing greater clearance in the machine’s working area.
Easily Accessible Height Adjustment for Feed Transport
The adjustment lever can be set to three positions:
A – light materials
M – medium materials
H – heavy materials
